Key Features
- Heavy-duty 16-inch planer/jointer combination machine for professional woodworking applications
- Helical cutter head with carbide inserts delivers smoother finishes and quieter operation
- Powerful 5 HP motor provides reliable cutting performance for hardwoods and large stock
- Combination design saves valuable workshop floor space
- Precision-ground cast iron jointer tables improve stability and accuracy
- Large aluminum fence system tilts for bevel jointing applications
- Quick conversion between jointer and planer modes increases workflow efficiency
- Multiple indexable carbide inserts reduce maintenance costs and simplify cutter replacement
- Four-post planer design improves thicknessing consistency and support
- Integrated dust collection ports help maintain cleaner workshop operation
Product Description

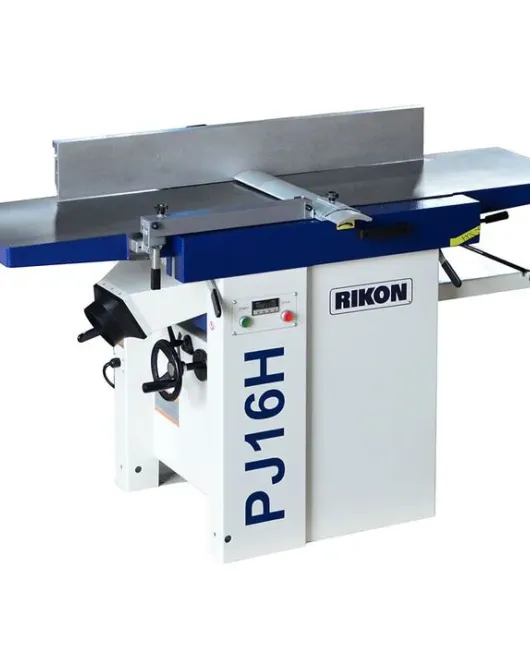

The RIKON 16-Inch Planer/Jointer with Helical Cutter Head (25-316H) is a professional-grade combination woodworking machine engineered for serious woodworkers, cabinet shops, furniture makers, and production workshops. Combining both jointing and planing functions into a single heavy-duty machine, the 25-316H maximizes workshop efficiency while reducing floor space requirements.
At the core of the machine is a precision helical cutter head equipped with multiple carbide inserts. The helical cutting system produces smoother finishes with reduced tear-out compared to traditional straight knife cutter heads, especially when working with figured hardwoods and difficult grain patterns. The segmented carbide inserts also operate more quietly and can be individually rotated or replaced when worn, minimizing maintenance downtime and operating costs.
The powerful 5 HP motor provides consistent cutting performance across demanding hardwood and large-panel applications. Precision-ground cast iron jointer tables deliver excellent stability and flatness for accurate edge jointing and face flattening, while the four-post planer system ensures smooth and consistent thickness planing performance.
Designed for professional workflow efficiency, the machine quickly converts between jointer and planer modes. The large adjustable fence supports bevel jointing operations, and integrated dust ports help improve chip collection and workshop cleanliness during operation.
Specifications
| Attribute | Value |
|---|---|
| Brand | RIKON |
| Model | 25-316H |
| Product Type | Planer/Jointer Combination Machine |
| Jointer Width Capacity | 16 in. |
| Cutter Head Type | Helical Cutter Head |
| Cutter Inserts | Carbide Inserts |
| Motor Power | 5 HP |
| Voltage | 230V |
| Phase | Single Phase |
| Jointer Table Length | Approx. 70 in. |
| Fence Size | Approx. 39-3/8 in. x 6-1/8 in. |
| Fence Tilt | 90°–45° |
| Maximum Planing Width | 16 in. |
| Maximum Cutting Depth | 1/8 in. |
| Feed Rate | Approx. 16 FPM |
| Dust Port Size | 5 in. |
| Construction | Cast Iron Tables |
| Machine Weight | Approx. 950 lbs |
| Application | Jointing, Thickness Planing, Woodworking |
What’s Included
- RIKON 25-316H 16-Inch Planer/Jointer
- Helical Cutter Head with Carbide Inserts
- Adjustable Fence System
- Dust Hood Assembly
- Push Blocks
- Adjustment Tools
- User Manual
